EvoCharge Max 80A Charging Station
EvoCharge Max 80A Charging Station
EvoCharge Max 80A Charging Station
EvoCharge

EvoCharge Max 80A Charging Station

Sale price$2,400.00
Trim:
EvoCharge Max 80A Charging Station
EvoCharge Max 80A Charging Station Sale price$2,400.00

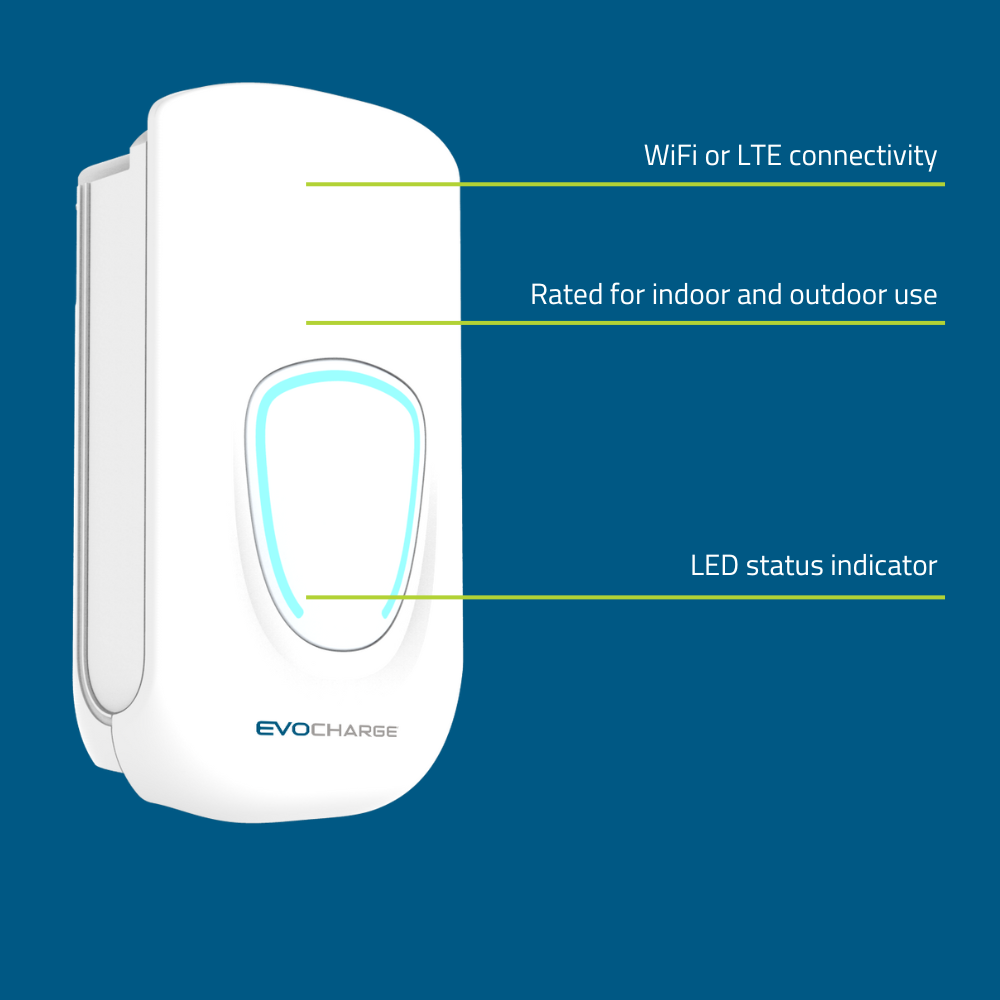

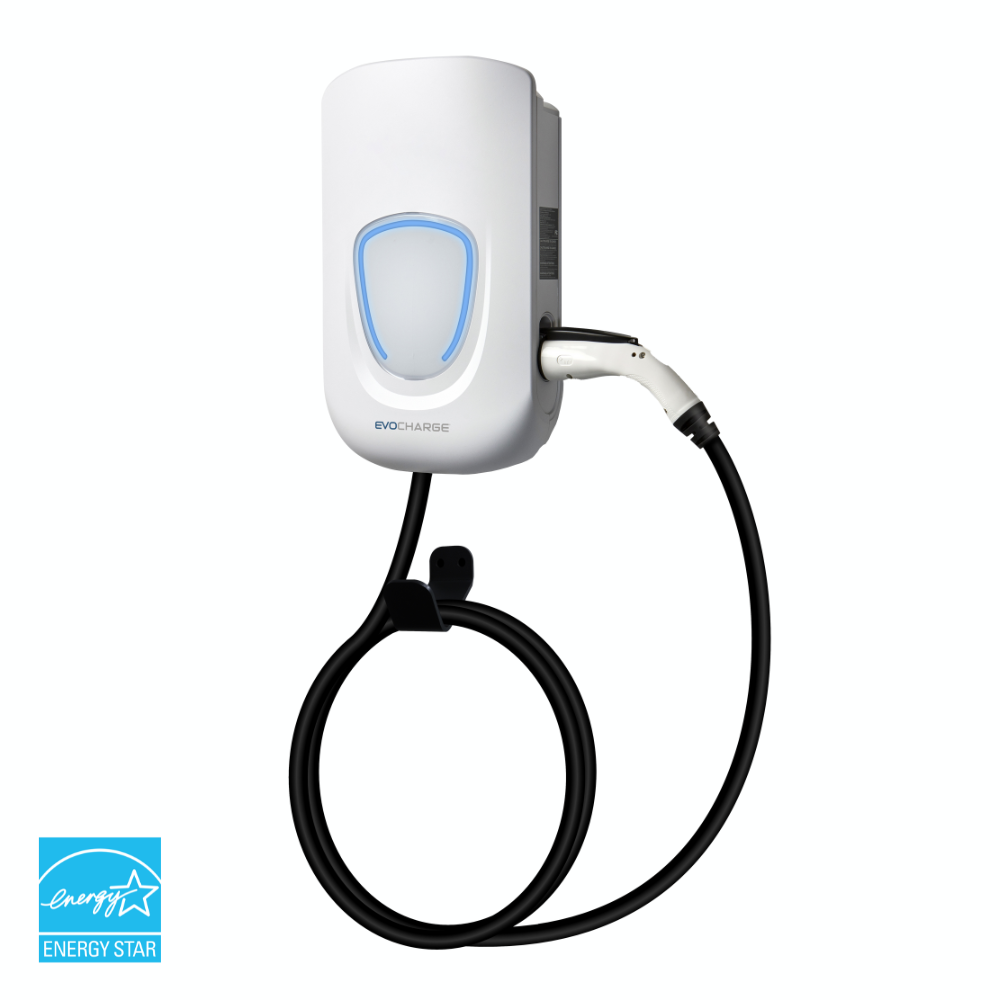

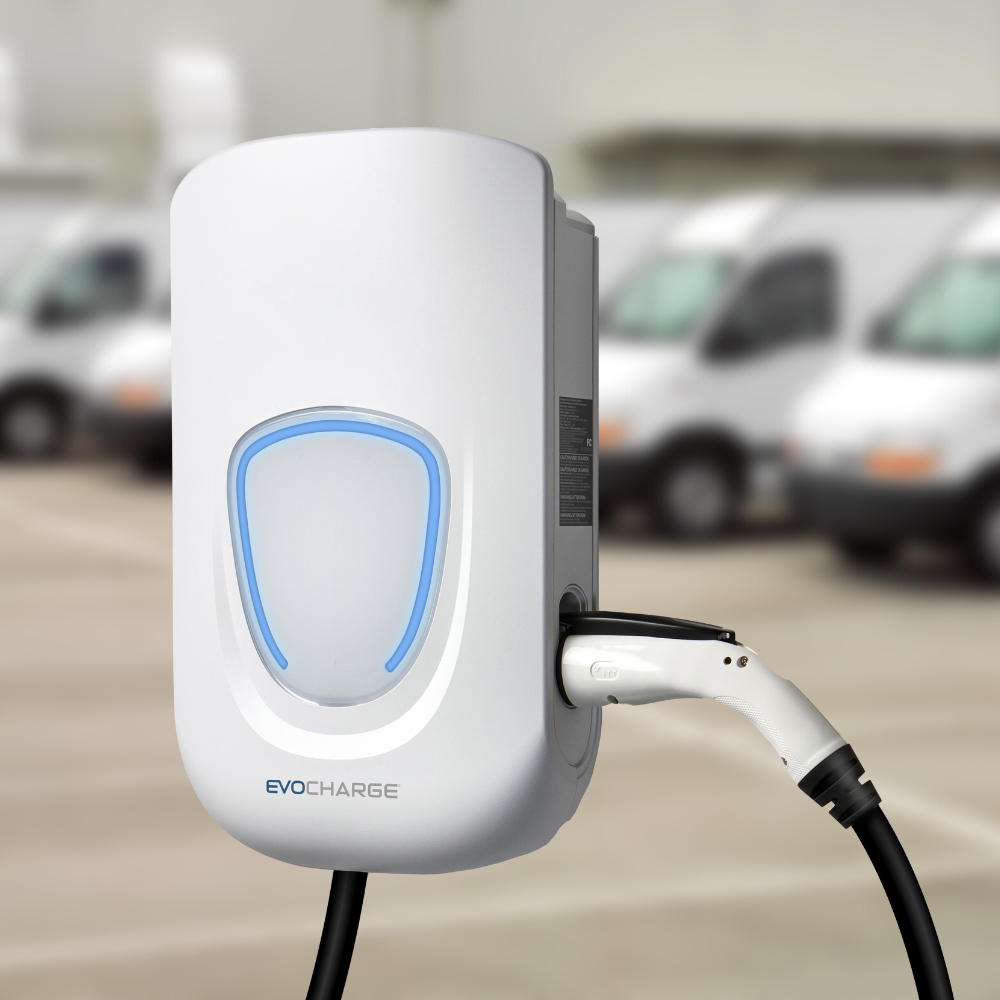

The EvoCharge Max 80 is a high-power Level 2 charging station designed for demanding applications, offering an 80A (19.2kW) output for faster EV charging. Equipped with a 15 ft. SAE J1772 cable, the Max 80 supports both WiFi and LTE networking for remote monitoring and control. An integrated RFID reader ensures secure access, making it ideal for commercial or fleet use. Built with a NEMA 3-rated enclosure, it withstands indoor and outdoor conditions. The Max 80 is UL/cUL listed and can be installed on walls or pedestals, providing a robust charging solution for high-power requirements.

✔ SAE J1772, AC Level 2 Charger (80A, 19.2 kW)
✔ Cable Management System: Integrated charging handle holster
✔ J1772 Cordset for universal EV compatibility (15 ft.)
✔ NEMA 3R, Indoor & Outdoor Rated Enclosure
✔ WiFi, LTE, and RFID Connectivity for smart access and monitoring
✔ UL/cUL Listed for Safety Compliance

🏠 Residential EV Charging
🏢 Commercial & Fleet Charging
🚗 Multi-User Parking Facilities
🔋 Workplaces, Apartments, & Public Stations

Feature Specification
Connector / EVSE Level SAE J1772
Max Output Rating 80A; 19.2 kW (at 240VAC)
Adjustable Output Settings 10A, 12A, 16A, 20A, 24A, 32A, 40A, 48A, 63A, 80A
Electrical Circuit / Input Power 208-240VAC, 60Hz, Single Phase
Input Power Connection Hardwired (No Neutral, 3-Wire: L1, L2, G)
Operational Ratings NEMA 3R, Indoor/Outdoor, Temp: -22°F to 122°F (-30°C to 50°C), Humidity: 95% RH, IK10 Impact Rating
Mounting Wall or Pedestal Installation
Dimensions 12.5 x 20.8 x 5.7 inches (317 x 529 x 145 mm)
Weight 32 lbs (14.5 kg)
Display & Indicators LED Charge Status Indicator (Power/Ready, Charging, Fault)
Cable Length 15 ft (4.5 m)
Cable Management Type Integrated Charging Handle Holster
Standards & Compliance UL/cUL Listed, ISO 15118 Ready, Energy Star®, FCC Part 15 Class B
Protections Ground Fault Detection (20 mA CCID), Over/Under Voltage, Over/Under Temperature, Surge Protection (6kV)
Communication & Networking WiFi 802.11 b/g/n (2.4GHz), 4G LTE (Verizon), RFID (ISO 14443A/B, ISO 15693)
Warranty Standard 3-Year Manufacturer Limited, Optional 2-Year Extension
