EvoCharge 50A EVC50 Charging Station
EvoCharge 50A EVC50 Charging Station
EvoCharge 50A EVC50 Charging Station
EvoCharge

EvoCharge 50A EVC50 Charging Station

Sale price$1,250.00
Trim:
EvoCharge 50A EVC50 Charging Station
EvoCharge 50A EVC50 Charging Station Sale price$1,250.00
  • Industry-leading Level 2 EV Chargers for residential and commercial use.
  • Flexible power options: 32A, 40A, 50A, and 80A.
  • Smart charging with WiFi, LTE, and RFID access control.
  • Durable, weatherproof designs (NEMA 4 rated).
  • Seamless integration with networked solutions for businesses.

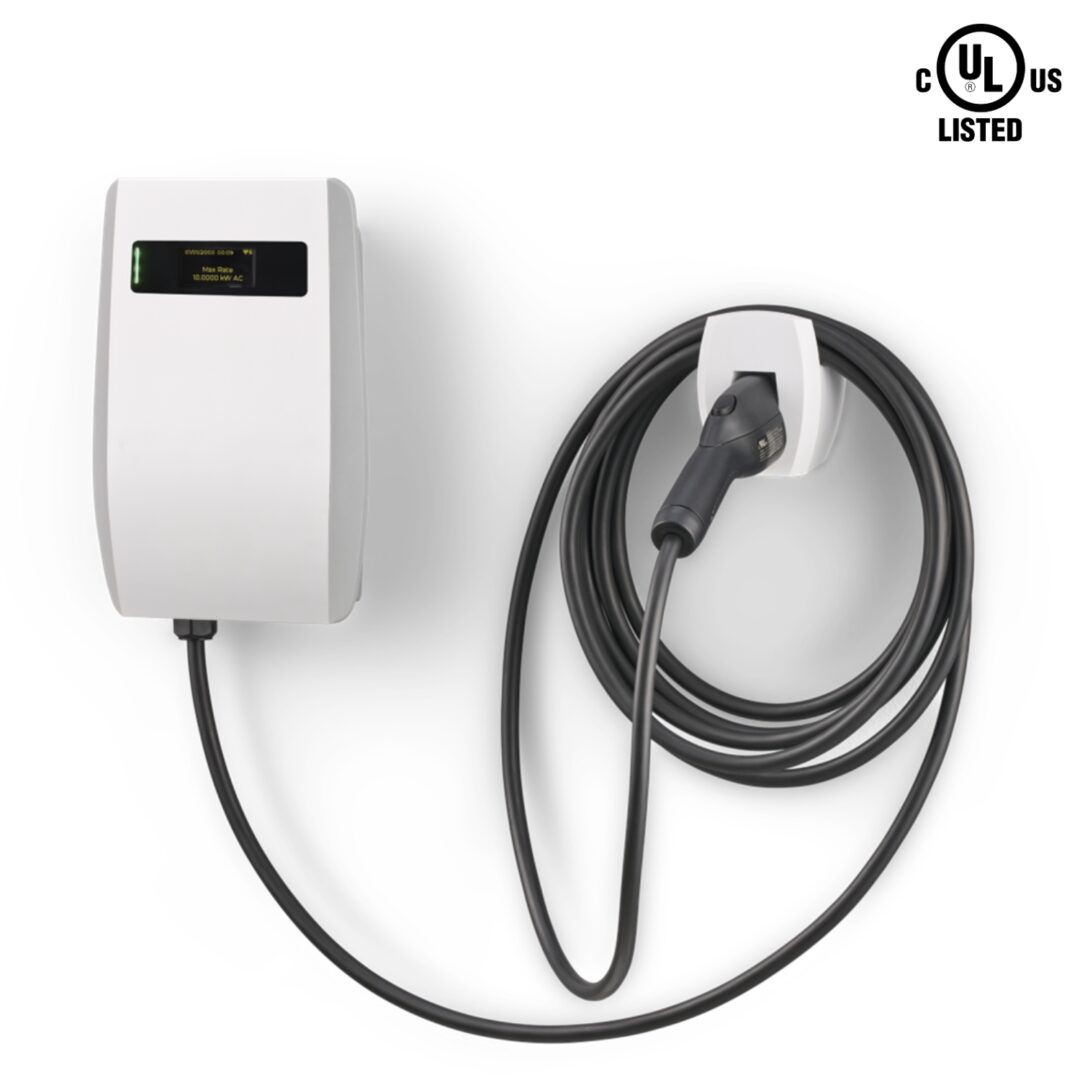

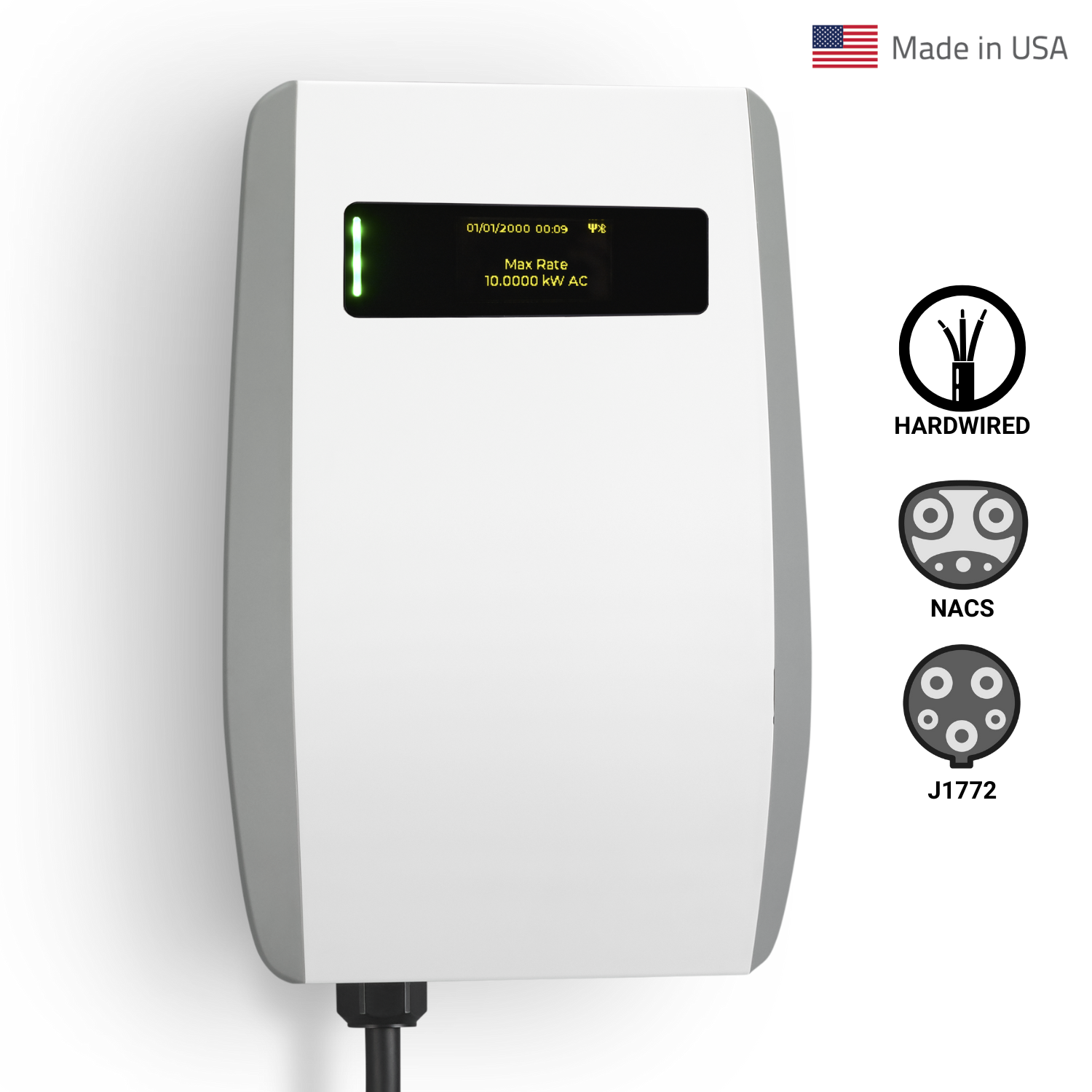

The EvoCharge EVC50 is a versatile Level 2 EV charger designed for residential and commercial applications. Delivering up to 50A (12kW), it provides efficient charging for electric vehicles. Available in non-networked, WiFi, and LTE configurations, the EVC50 offers flexibility for different user needs. It features an 18 or 25 ft. charging cable, a remote holster for cable management, and a NEMA 4-rated enclosure for indoor and outdoor durability. The EVC50 is UL/cUL listed and Energy Star certified, supporting both wall and pedestal mounting for adaptable installation options.


✔ SAE J1772, AC Level 2 Charger (50A, 12 kW)
✔ Cable Management System: Connector & holster included
✔ J1772 Cordset for universal EV compatibility
✔ NEMA 4, Outdoor & Indoor Rated Enclosure
✔ UL/cUL Listed for Safety Compliance


🏠 Residential EV Charging
🏢 Commercial & Fleet Charging
🚗 Multi-User Parking Facilities
🔋 Workplaces, Apartments, & Public Stations

Feature Specification
Connector / EVSE Level SAE J1772
Max Output Rating 50A; 12 kW (at 240VAC)
Adjustable Output Settings 48A (Factory Setting), 40A, 32A, 24A, 16A
Electrical Circuit / Input Power 208-240VAC, 60Hz, Single Phase
Input Power Connection Hardwired (No Neutral, 3-Wire: L1, L2, G)
Operational Ratings NEMA 4, Indoor/Outdoor, Temp: -22°F to 122°F (-30°C to 50°C), Humidity: 95% RH, IK10 Impact Rating

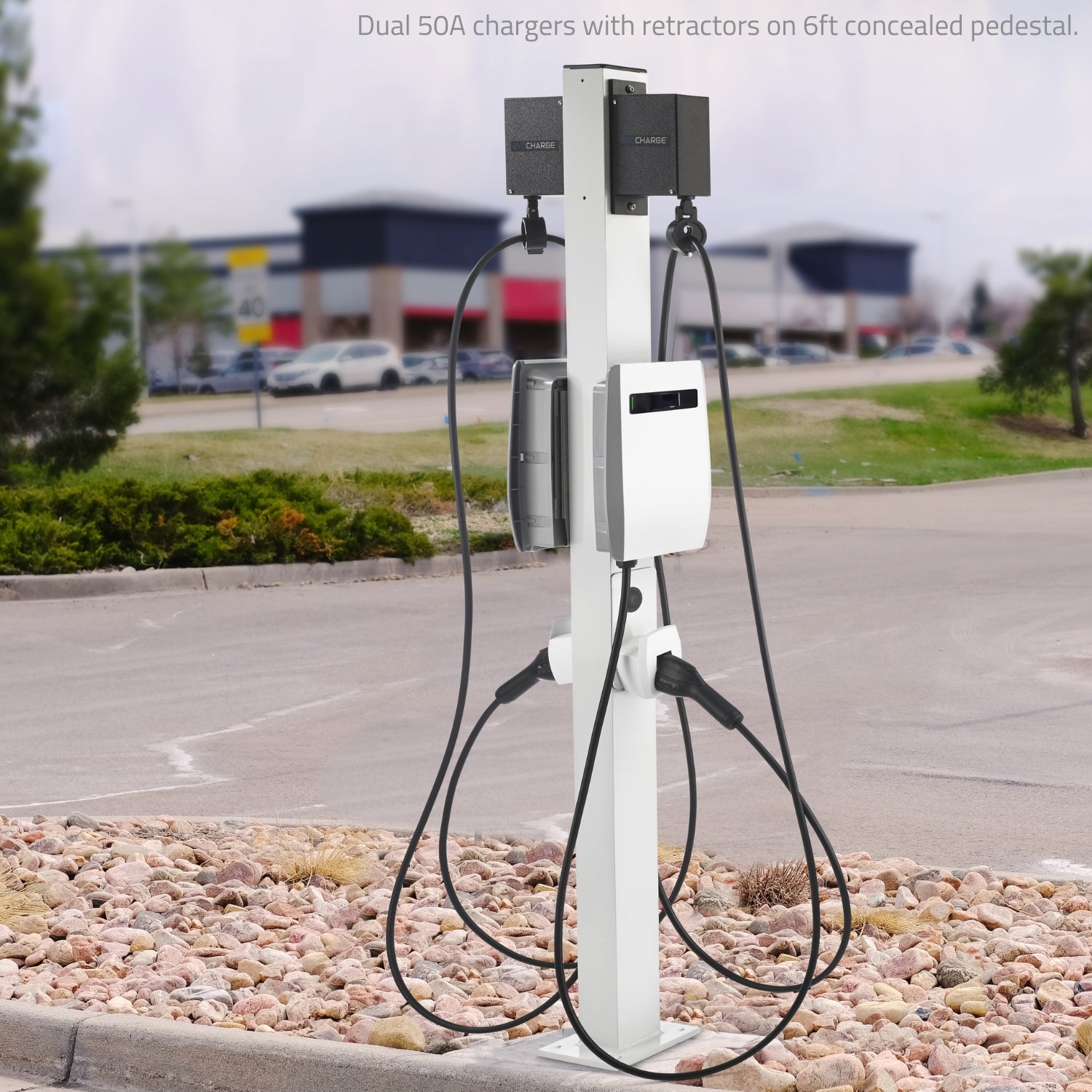

Mounting Wall or Pedestal Installation
Dimensions 9.7 x 13.8 x 3.5 inches (245mm x 351mm x 88mm)
Weight 11.68 lbs (5.3 kg)
Display & Indicators LED Charge Status Indicators (Power/Ready, Charging, Fault)
Cable Length 25 ft (7.62 m)
Cable Management Type Remote Charging Handle Holster and Cable Hook Included
Standards & Compliance UL 2594, UL 2231-1, UL 2231-2, UL 1998, NEC 625, Energy Star®, FCC Part 15 Class B
Protections Ground Fault Detection (20 mA CCID), Earth Ground Detection, Over/Under Temperature, Surge Protection
Warranty Standard 3-Year Manufacturer Limited, Optional 2-Year Extension
