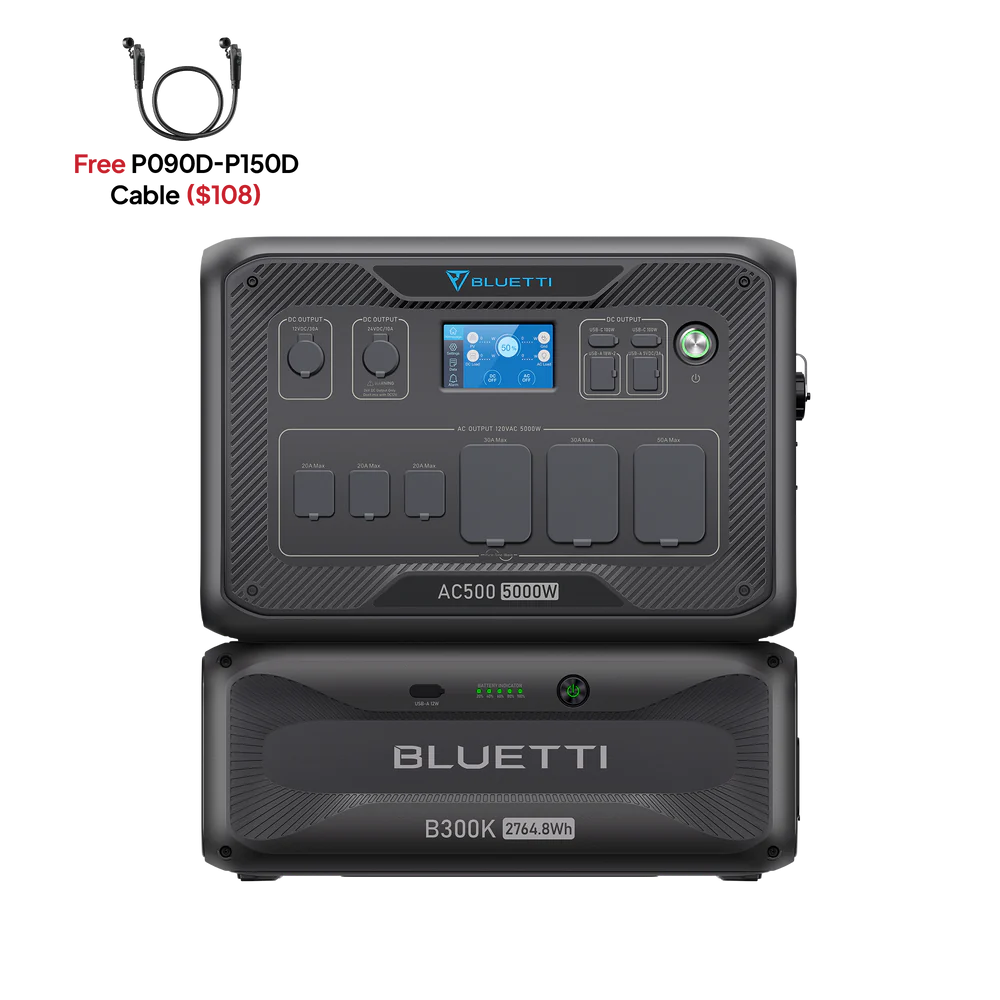

The BLUETTI AC500 & B300K modular power system is a premium energy solution built for high-demand residential, mobile, and off-grid scenarios. Engineered for flexibility, scalability, and smart energy management, this system combines cutting-edge inverter technology with long-lasting battery storage.
Each AC500 inverter delivers a powerful 5,000W pure sine wave output with 10,000W surge capacity. Paired with the B300K battery module—each providing 3,072Wh—you can configure your setup with 1 or 2 AC500 units and 1 to 12 B300K batteries, enabling a wide range of applications from RV use to whole-home backup.
In single-inverter setups, you can connect up to 6 B300K batteries for 18,432Wh of energy. With dual AC500 units in split-phase mode (enabled via the Fusion Box Pro), your system can handle up to 12 B300K batteries, delivering a massive 36,864Wh of storage. This makes it a powerful choice for heavy-duty off-grid living or uninterrupted emergency backup.
✔ 1–2 BLUETTI AC500 Inverter Modules (5,000W, 10,000W Surge per unit)
✔ 1–12 B300K Expansion Batteries (3,072Wh per unit, LiFePO₄)
✔ Battery-to-Inverter Connection Cables
✔ User Manual & Warranty Information
🏡 Whole-Home Backup & Split-Phase Power Systems
🚐 Full-Time RV & Off-Grid Travel
🛠 Construction, Mobile Worksites, and Power Tools
🔌 Emergency Backup for Critical Appliances
🌞 Hybrid Solar Systems for Sustainable Living
| Parameter | Value |
|---|---|
| Output Power | 5,000W |
| Surge Power | 10,000W |
| Output Voltage | 100/120/230/240V |
| AC Input | Max. 4,500W |
| PV Input | Max. 3,000W |
| Dual Input (AC + PV) | Max. 8,000W* |
| MPPT Voltage Range | 12V–150V |
| UPS | Yes |
| Capacity Range | 3,072Wh (1 B300K) to 36,864Wh (12 B300K) |
| Split-Phase Output | 240V (w/ 2x AC500) |
| Operating Temperature | -4°F to 104°F / -20°C to 40°C |
| Storage Temperature | -4°F to 104°F / -20°C to 40°C |
| Certifications | UL, CEC, DOE, FCC, CA Prop 65 |
*Note: 8,000W input requires at least two B300K modules connected.
| Model | Dimensions (L×W×H) | Weight |
| AC500 | 20.5 × 12.5 × 10.5 in (52 × 32 × 26.6 cm) | 79.6 lbs / 36.1 kg |
| B300K | 20.5 × 12.8 × 14.1 in (52 × 32.5 × 35.8 cm) | 66.2 lbs / 30 kg |
✔ Flexible Configurations: 1–2 AC500 + 1–12 B300K Batteries
✔ Expandable Storage: Up to 36,864Wh for Whole-Home Backup
✔ 5,000W Output per Inverter (10,000W Surge)
✔ Fast Charging via AC + 3,000W Solar Hybrid Input
✔ LiFePO₄ Cells with 3,500+ Life Cycles
✔ Real-Time App Monitoring via WiFi & Bluetooth
✔ Seamless UPS Backup (≤20ms Switch Time)
✔ Split Phase 240V Support with Fusion Box Pro
